Comparison with Standard Fiber Patch Cord:
Compression Resistance (Long-term/Short-term): 2000N/10cm and 4000N/10cm (armored) vs. 500N/10cm and 1000N/10cm (standard)
Cable Tensile Strength (Long-term/Short-term): 200N/400N (armored) vs. 70N/120N (standard)
Application and Usage:
Suitable for telecom-grade optical fiber communication and data transmission
Ideal for harsh environments requiring high mechanical protection and stable connections
Quality and Standards:
Notes:
Do not look directly into the fiber optic end face
Data based on BOYANG laboratory testing for reference only
Summary:
BOYANG armored fiber optic patch cords deliver high reliability, stability, and performance with advanced bend-insensitive G.657A2 fiber, robust armored protection, low insertion loss, and excellent environmental adaptability. They are engineered for demanding telecom and data communication applications, ensuring secure and durable optical connections.
| Width | 21.7 |
| Height | 1.3 |
| NetWeight | 0.06 |
| Brand | BOYANG (BCYANG) |

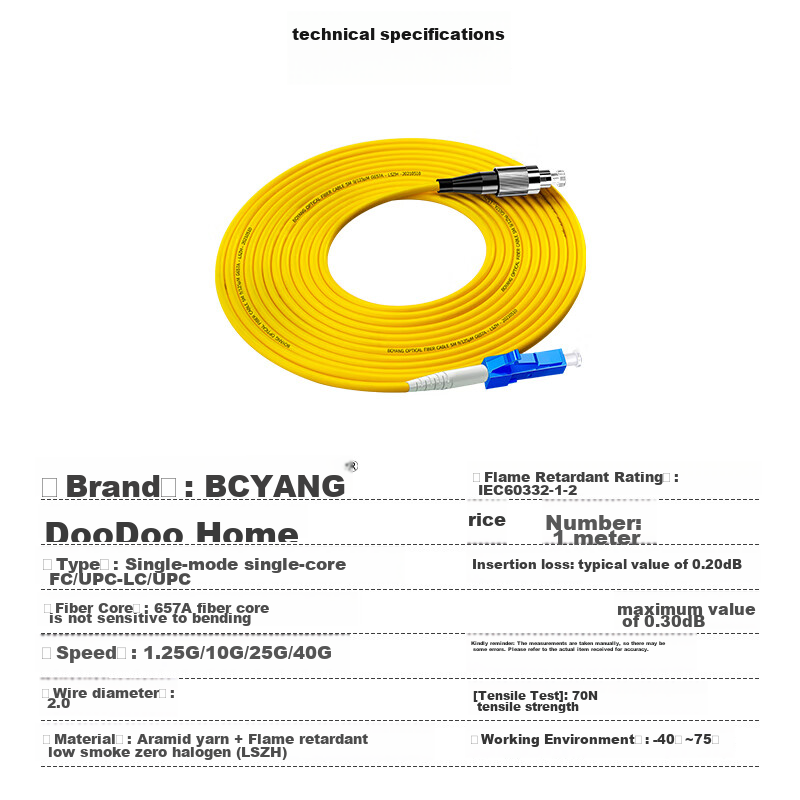

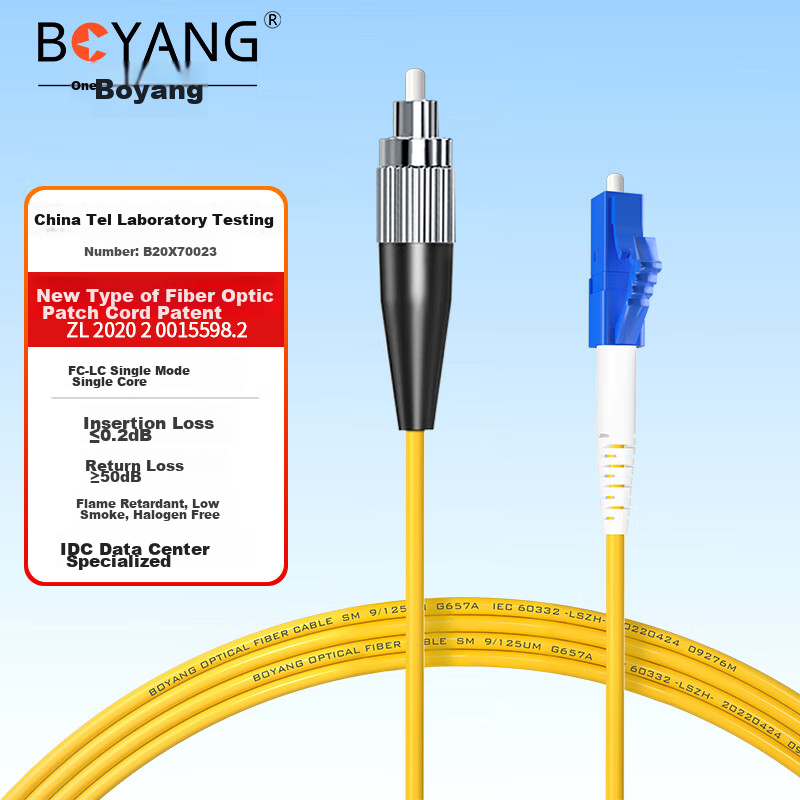

| Product Name | Telecom Grade Armored Fiber Optic Patch Cord |
| Type | Single-mode, Single-core FC-LC (UPC) |
| Fiber Standard | G.657A2 |
| Fiber Core Count |
No reviews yet — be the first to review.
| Single-core |
| Outer Sheath Material | LSZH (Low Smoke Zero Halogen), environmentally friendly and flame retardant |
| Flame Retardant Rating | IEC60332-1-2 and GB/T18380.12-2008 |
| Sheath Color | Blue |
| Fiber Core Diameter | 9 μm |
| Cladding Diameter | 125 μm |
| Fiber Outer Diameter | 3.0 mm |
| Fiber Length | 3 meters |
| Fiber End Face | UPC (Ultra Physical Contact) |
| Insertion Loss | ≤0.2 dB (typical), maximum ≤0.3 dB |
| Return Loss | >50 dB (UPC) |
| Tensile Strength | Withstands maximum pull force ≥70 N |
| Minimum Bending Radius | Static 15 mm, Dynamic 30 mm |
| Fiber Core | G.657A2 bend-insensitive fiber |
| Data Rate Support | 155M/1.25G/10G/25G/40G/100G/200G/400G |
| Connector Type | FC-LC |

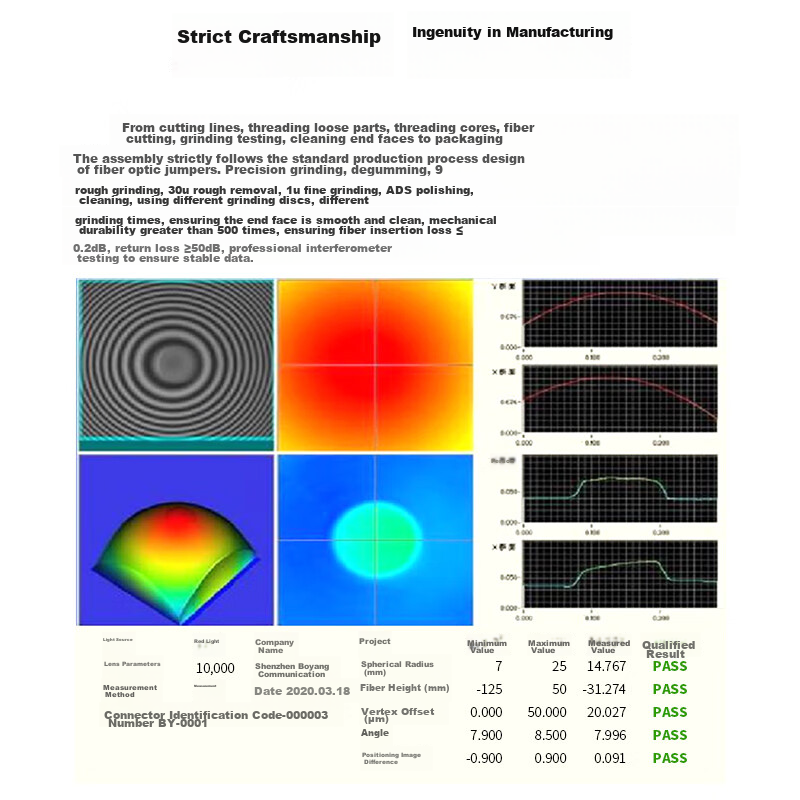

| End Face Polishing | UPC (Ultra Physical Contact) |
| Ceramic Ferrule | High precision zirconia ferrule |
| Mating Durability | ≥1000 mating cycles |
| Sealing | Suitable for harsh environments ensuring stable connection |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| UV Resistance | Yes, suitable for indoor environments |
| High Temperature Resistance | Complies with IEC60794-1 standard |
| Armored Layer | Spiral metal armor providing high compression resistance, tensile strength, bending resistance, and rodent protection |

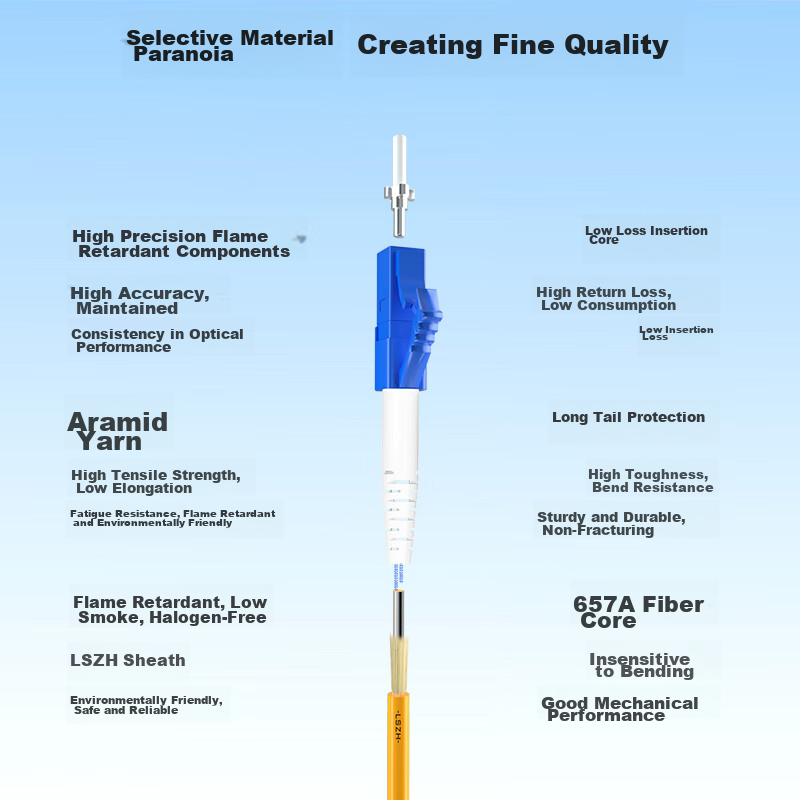

| Fiber Protection | Tight-buffered fiber core with aramid yarn reinforcement and TPU tubing |
| Outer Sheath | LSZH, environmentally friendly, flame retardant, high compression resistance, and rodent-proof |

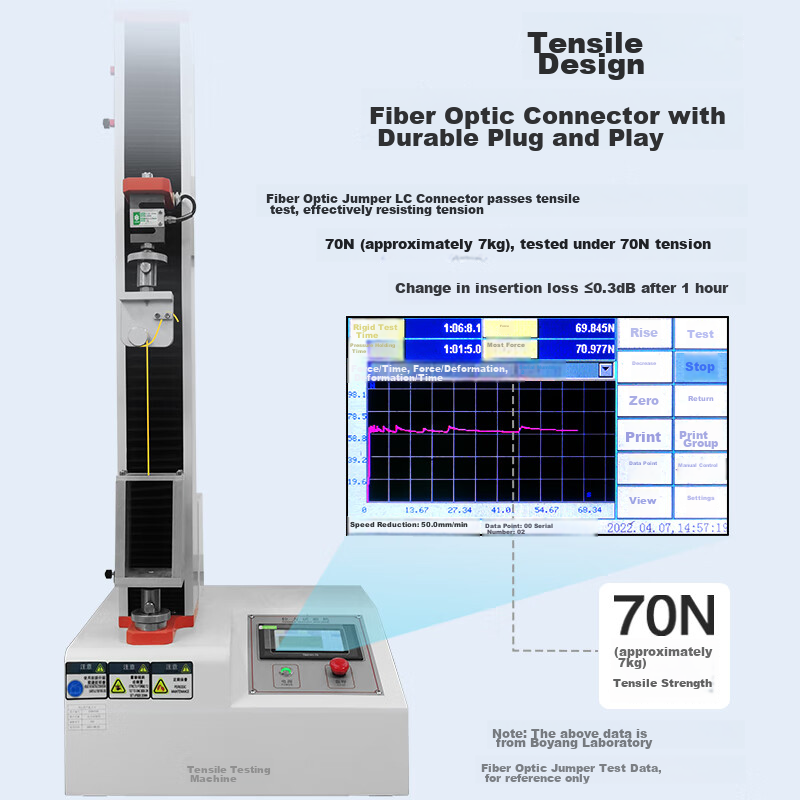

| Tensile Strength Test | Passed 70N pull force for 1 hour with insertion loss change <0.3 dB |
| Connector Tensile Strength | 70N |
| Bending Radius | Static 15 mm, Dynamic 30 mm |
| Durability | Superior impact resistance, crush resistance, and rodent protection |
| Connector compatibility | FC and LC interfaces with single-core matching single-port devices |
| Color Coding | Blue for single-mode fiber patch cords |
| Quality Management | ISO9001:2000 certified |
| Compliance Standards | ISO/IEC11801:2008, YDT1272-2009, ANSI/TIA568-C.3 |

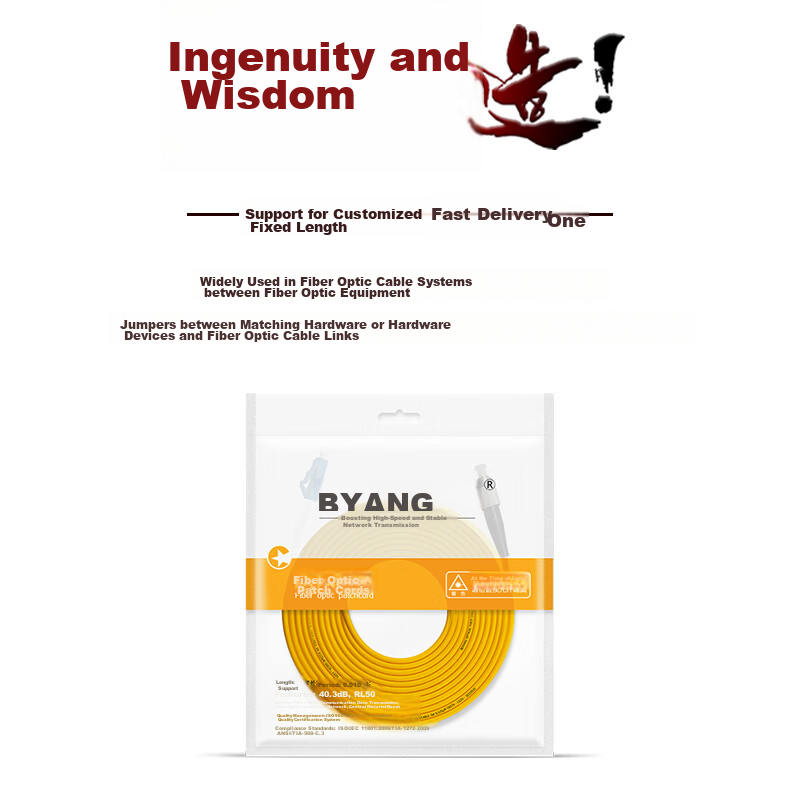

| Packaging | Individually dust-proof packaged with product label |
