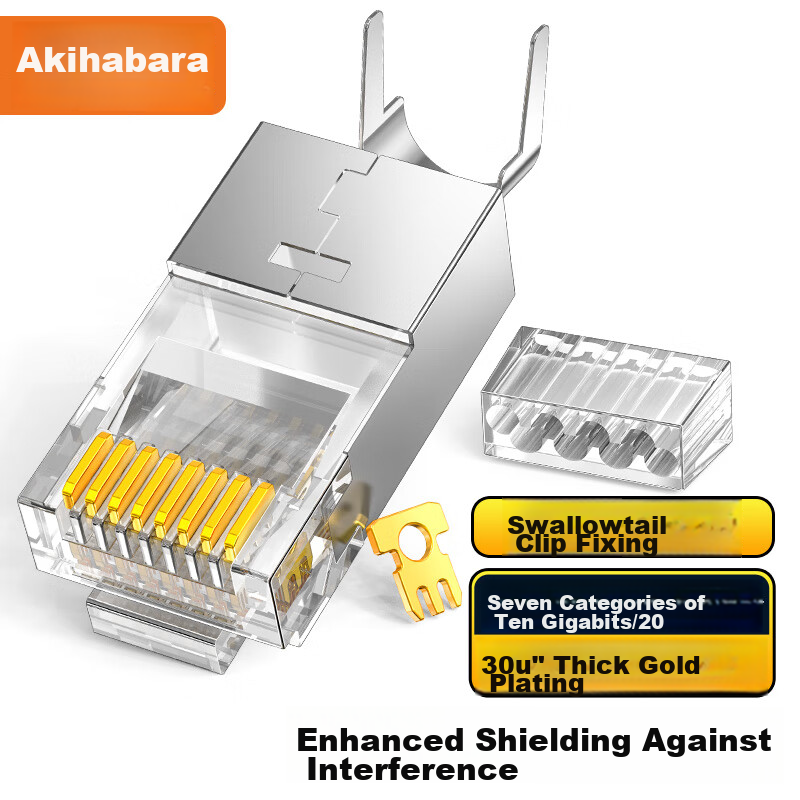

CHOSEAL Gold-Plated Cat6 Crystal Head (20pcs)

Aperture Inner Diameter: 1.05mm

Application: Suitable for switches, ADSL, routers, network TVs, etc.

Packaging: Bagged (10, 20, 50 pieces) Boxed (100 pieces)

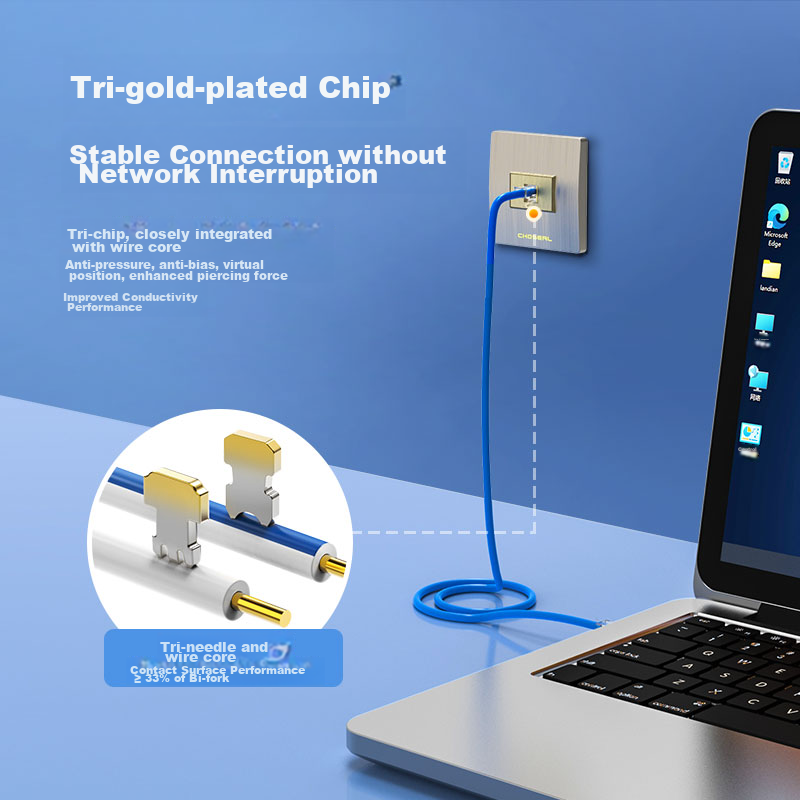

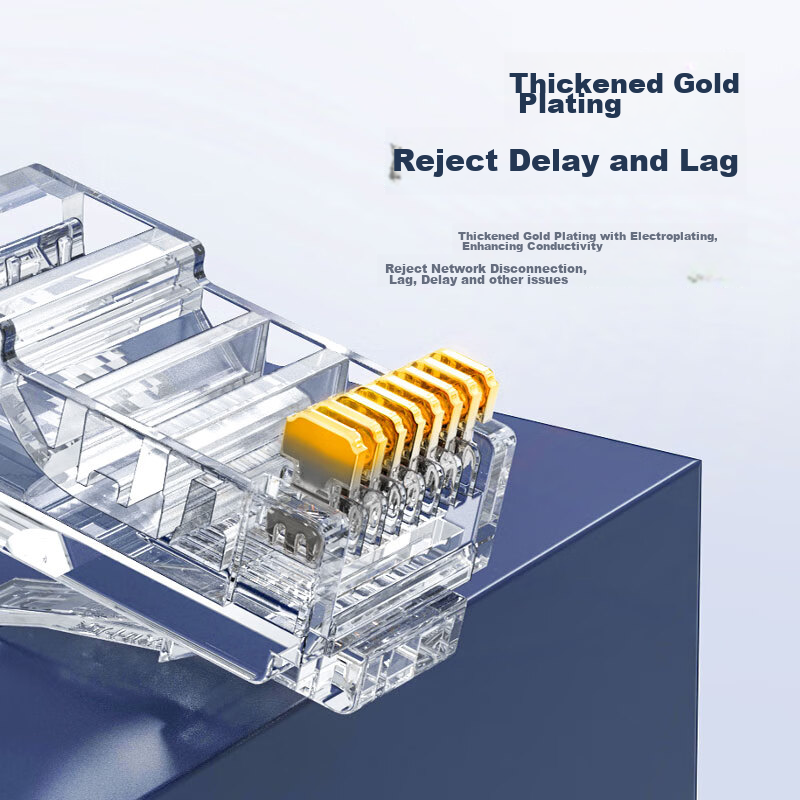

- Gold-plated triple fork chip for seamless core contact

- Transparent PVC shell for durability and resistance to dirt and wear

- Three-piece design for easy wiring and standardized operation

- Compatible with Category 6 cables for enhanced Gigabit performance

1. Strip the cable and expose the wires according to T568B standard (Orange-White, Orange, Green-White, Blue, Blue-White, Green, Brown-White, Brown)

2. Fix the cable in the tool slot and insert the wires into the crystal head following the specified sequence

3. Secure the wires in the guide slot and trim any excess cable

4. Insert the crystal head in the correct orientation

5. Crimp the crystal head using a crimping tool

6. Ensure the wires are fully inserted and secure for optimal performance

Note: Proper crimping of the crystal head will result in sequential blinking of the signal lights.
