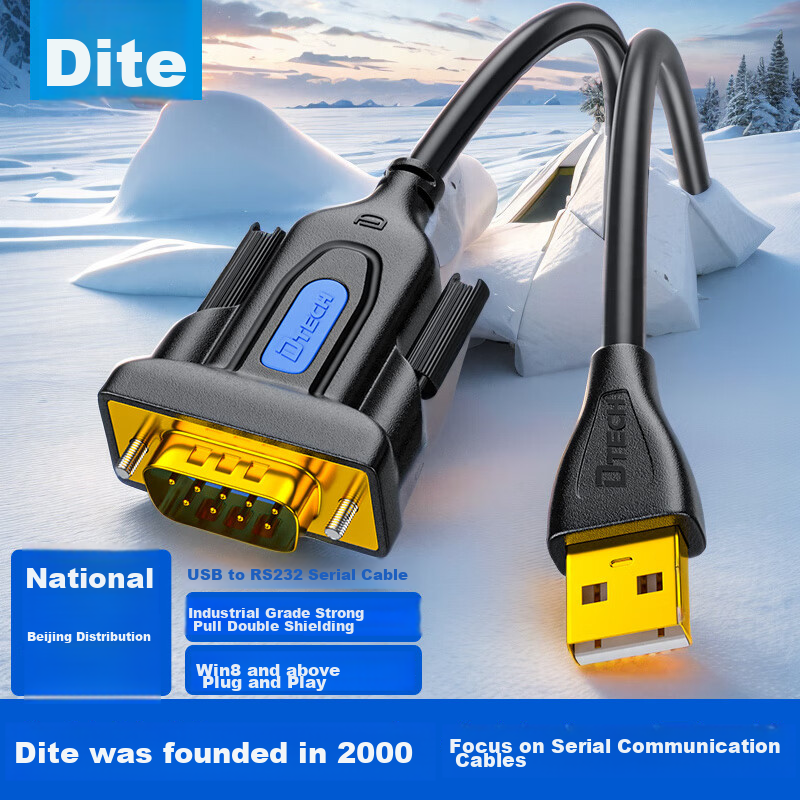

DTECH USB to RS232 Serial Cable (2m)

Cable Structure: 24WG wire 64 braided tin-plated copper + aluminum foil double shielding + four anti-pull ropes + 7 core + 8mm thick wire body, fully shielded environment

Chip: MS3020 high-performance chip

Operation Mode: Asynchronous full-duplex communication

USB Signal: VCC, DATA+, DATA-, GND

RS-232 Signal: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI

Signal Indicator: No indicator light

Interface: USB-A male, RS-232 interface: DB9 pin

Communication Rate: 300-115200bps, automatically detect serial signal rate

Communication Distance: 0.5m to 5m

Number of Nodes: Point-to-point connection

Protection Level: 15kV IEC1000-4-2 air discharge

Lightning Surge Protection: 600W lightning surge protection

Wiring Method: Can be connected to terminal equipment via twisted pair or shielded cable

Transmission Medium: Twisted pair or shielded cable

Supported Systems: Windows 11, 10, 8, 8.1, 7, Server 2008, XP, Linux, etc.

Power Supply: USB powered

Voltage Range: 5V

Operating Current: Less than 300mA

Operating Temperature: -40°C to 85°C

Relative Temperature: 5% to 95%

Net Weight: 70g ± 50g

Length: 0.5m / 1m / 1.5m / 2m / 3m / 5m

Accessories: QR code card, certificate of conformity, serial cable

Packaging: Paper box

Warranty: One year

Application Scenarios: Industrial automation control systems, access control systems, power control systems, parking systems, attendance machines, industrial control computers, PLC controllers, etc.

DTECH USB to DB9 pin RS232 cable with built-in chip for stable transmission, durability, and strong anti-interference capabilities.
