Jinling Powerful 6-Inch Exhaust Fan

- High efficiency and energy-saving

- Easy installation

- Instantly exhaust without leaving odors

- Single-opening rear cover design for smoother and larger exhaust volume

- Patented check valve device for quiet ventilation

- 258m³/h large air volume design

- Ventilates a 5m² space 22 times per hour

- Automatic check valve closure to prevent insects and odors

- Suitable for various scenarios such as bathrooms, kitchens, dining rooms, and mahjong rooms

- ABS material for durability and easy cleaning

- High safety with good electrical insulation

- Window installation: Indoor and outdoor installation with panel screws and glass clamps

- Wall installation: Drill a 110-240mm diameter hole and secure with glass glue

- Zero line and fire line connection with single control switch

- Models: APC15-2-30(B8), APC20-3-30(B8), APC10-2-C(B8), APC25-4-C(B8), APC15-2-C(B8), APC20-3-C(B8)

- Sizes: 4-inch, 6-inch, 8-inch, 10-inch

- Rated Voltage: 220V

- Frequency: 50Hz

- Power: 10W, 16W, 23W

- Air Volume: 55m³/h, 180m³/h, 258m³/h, 378m³/h

- Noise Level: 38dB(A), 39dB(A), 42dB(A), 45dB(A)

- Opening Size: Φ100-110mm, Φ152-155mm, Φ180-185mm, Φ233-240mm

- Applicable Area: 4-7m², 7-10m², 12-20m², 20-25m²

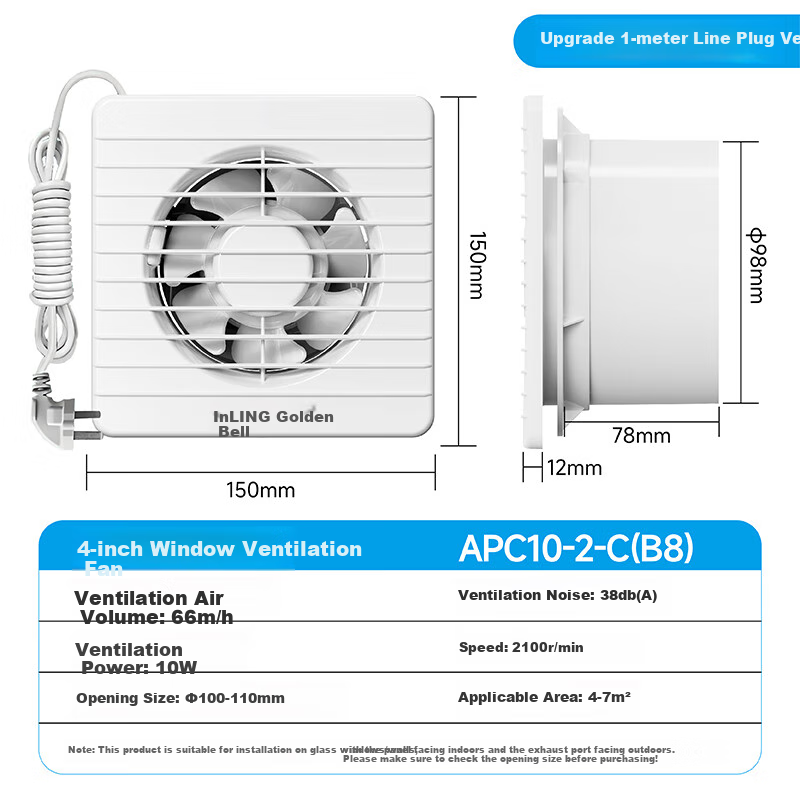

- APC10-2-C(B8): 150a x 150b x 12C x 78d x Φ98e

- APC15-2-C(B8): 200a x 200b x 12C x 66d x Φ150e

- APC20-3-C(B8): 250a x 250b x 13C x 104d x Φ180e

- APC25-4-C(B8): 283a x 283b x 15C x 128d x Φ230e
