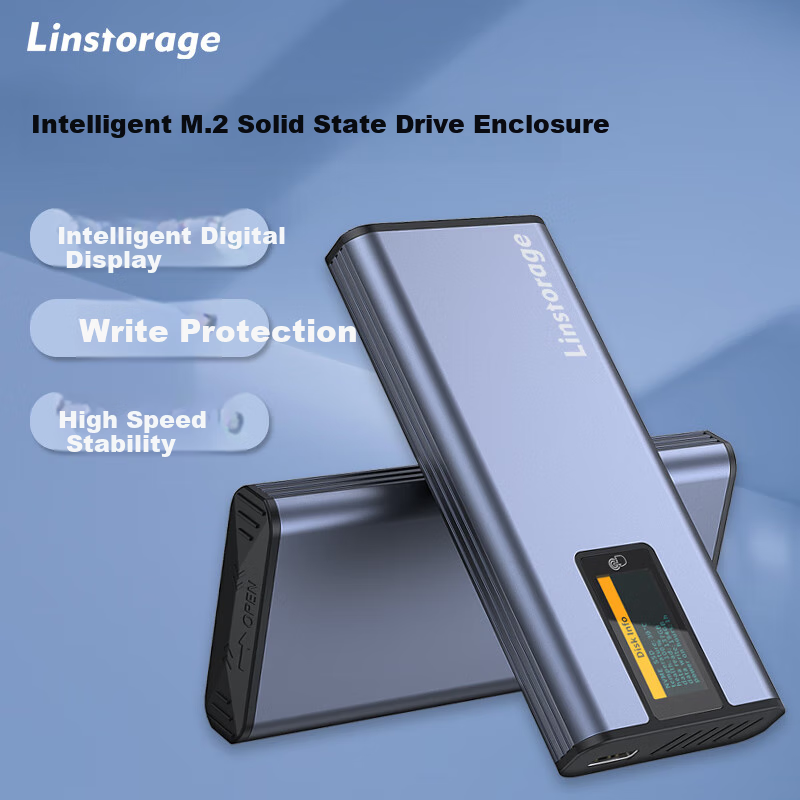

LINSTORAGE M.2 NVMe Dual-Slot SSD Enclosure

Supports UASP acceleration protocol and TRIM command

Controller:

Equipped with JMS581 advanced flagship controller chip

Dual NVMe solution for stable and reliable performance

Performance:

Sequential read speed up to 7.2MB/s (per disk)

Sequential write speed up to 4.5MB/s (per disk)

Dual-disk simultaneous read capability

Offline clone function for disk-to-disk copying without PC connection

Cooling System:

Multiple heat dissipation features including:

- Built-in large silent cooling fan

- Multiple ventilation holes on sides and fan area

- Thermal silicone pads for efficient heat transfer

Aluminum alloy bottom cover for enhanced heat dissipation and durability

Installation:

Tool-free, screwless design for easy installation

Multiple fixed mounting holes to accommodate various M.2 SSD sizes (2230, 2242, 2260, 2280)

Compatibility:

Indicators & Controls:

Dual-color LED indicators for disk status and offline clone status:

- Disk indicator: Red (no disk), Blue (disk detected), Red/Blue flashing (working)

- Clone indicator: Blue flashing (cloning in progress), Blue steady (clone complete)

Independent toggle power switch

Offline clone button for one-touch disk cloning

Power:

DC power input port

Operating Modes:

1. Normal Mode: Connect data cable and power to use

2. Clone Mode: Connect power only, no data cable needed for offline cloning

Offline Clone Operation:

Target disk capacity must be equal or greater than source disk

Steps:

1. Insert source and target disks, connect power, and turn on power switch

2. Disk indicators turn from red to blue indicating detection

3. Press and hold CLONE button for 3-5 seconds until beep, release, then press again within 1 second

4. Clone indicator flashes during cloning; all LEDs lit indicate completion

Additional Features:

Supports multiple device scenarios for data portability and expanded storage

Silent fan operation with optimized cooling efficiency

Easy plug-and-play with no driver installation required
